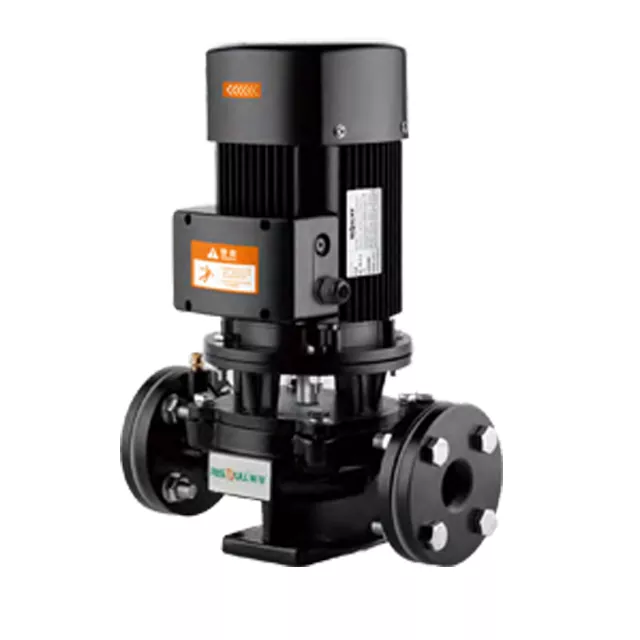

Industrial Hot aqua Circulation Pump

Model:50GD

Surrurêfull® est a ducit Sina Industrial calida aqua circulation sentinam manufacturer, elit et exporter. Adhaerens ad studium perfectam qualis products, ut nostra industrialis calida aqua sentinam satisfied multis customers. Extremum consilium, materias rudis qualitas, princeps effectus ac pretium competitive sunt quod omnis mos velit, et id etiam quod tibi offerre possumus. Scilicet, etiam essentialis est perfecta post venditionesque servitium. Si vos es interested in industriae calida aqua sentinam Services, vos can consulere nobis nunc, ut non respondeo vobis in tempore!

Mitte Inquisitionem

depictio producti Data Installation Dimensiones

Aquae calidae Industrialis Circulationis Pump est valde efficax et certa solutio ad circulationem aquae calidae in variis applicationibus industriae. Cum consilio robusto, summa incisura effectus, et features usoris amicabiles, haec sentina perfectus est in applicationibus circulatione aquae calidae amplis.

Sequens est GD Series introductio. Ferrum in linea sentinae fusum est quae late in aere centrali Aedificii, aquae circulationes aedificiorum & mansionum & mansionum ratio calefacta est, tibia circulatio plantae et Irrigationis agriculturae.. Spes ad auxilium te melius intelligis sentinam aquae industrialis Risfull . Exspectate clientes novos et veteres pergere ad cooperandum nobis ut melius futurum simul crearent

Product Details

Industrial Hot Water Circulation Pump

Opus Condition

Tersus liquor sine suspendendi solidorum, non infestantibus

Continua Service: S1

Maximum Pressura: X Bar

Liquid Temperature:3℃~9℃

Ambiens Temperature:<40℃

Insulation: F

Praesidium: IP54

Exemplar Definition

Exploded View OF Main Component

Industrial Hot Water Circulation Pump

Indicem Main Component Signare figurationem 〇 Configurationis libitum
NO.	Component	Specification/Construction Characteres
1	ANTLIA CORPORIS	Ferrum HT200, Electro-faciens Bum (Sal Spray obsistens tium 300+ Horae)
2	IMPELLER	Ferrum HT200, Electro-faciens Bum (Sal Spray obsistens tium 300+ Horae)
3	Mechanica Sigillum	19BND Type（Furan Impregnation Graphite+SIC， usus vitae 25,000+ Horae）
4	Bracket	Ferrum HT200, Electrocoating Bum (sal Spray obsistens tium 300+ Horae)
5	Globus Bearings	● C&U 〇 TPI(Taiwan)
6	Motor Shaft	● Welding Shaft: Diver 304 (Pump Side) + Carbon Steel (Motor Side)
7	Terminatio Box	aluminium ADC12
8	Terminatio Tabula	Flamma retardans PBT
9	Motor habitationi	aluminium ADC12
10	Fan	●Plastic PP 〇 Nylon PA6
11	Fan Cover	Tensile Steel Plate
12	Plug Funiculus	● 3 Core Testimentum Cable 〇 Cables Plug
13	Motor	●IE2 Motor ◯ Lorem 60 HZ Motor

Exemplar	Impellentem Diameter	Ratum capacitatem	Rated Caput	Efficientia	RPM	Motor Power	NPHS	Inlet/e
Exemplar	Impellentem Diameter	Q/m³/h	H(m*	(%)	(r/min)	(kW)	(M)	Inlet/e
50GD16-11-1.1T	125	8/11/14.5	17/16/14	47/57/54	2900	1.1	2.3	50
50GD10-22.3-1.1T	100	15.6/22.3/29	11/10/8.4	65/67/68	2900	1.1	2.3	50
50GD20-12.5-1.5T	125	8.8/12.5/16.3	21.5/20/17.8	49/58/57	2900	1.5	2.3	50
50GD12.5-25-1.5T	100	17.5/25/32.5	13.7/12.5/10.5	67/69/69	2900	1.5	2.5	50
50GD28-11.7-2.2T	160	8.2/11.7/15.2	29/28/26	44/51/50	2900	2.2	2.3	50
50GD16-22.3-2.2T	125	15.6/22.3/29	17/16/13.6	58/66/65	2900	2.2	2.5	50
50GD32-12.5-3T	160	8.8/12.5/16.3	33/32/30	45/52/51	2900	3	2.3	50
50GD20-25-3T	125	17.5/25/32.5	21.5/20/18	60/68/67	2900	3	2.5	50
50GD24-21.6-3T	160	15/21.6/28	26/24/20.6	49/58/54	2900	3	2.5	50
50GD44-11.7-4T	200	8.3/11.7/15.3	45.8/44/42	37/45/45	2900	4	2.3	50
50GD32-25-4T	160	17.5/25/32.5	34.4/32/27.5	54/63/60	2900	4	2.5	50
50GD28-23.4-4T	160	16.4/23.4/30.4	30/28/24	54/62/59	2900	4	2.5	50
50GD50-12.5-5.5T	200	8.8/12.5/16.3	52/50/48	38/46/46	2900	5.5	2.3	50
50GD38-21.8-5.5T	200	15.2/21.8/28.3	40/38/34.5	45/55/55	2900	5.5	2.5	50
50GD70-11.6-7.5T	250	8.2/11.6/15.2	71.5/70/68	28/38/39	2900	7.5	2.3	50
50GD50-25-7.5T	200	17.5/25/32.5	52.7/50/45.5	49/58/59	2900	7.5	2.5	50
50GD44-23.5-7.5T	200	16.4/23.5/30.5	46.4/44/40	48/57/58	2900	7.5	2.5	50

Exemplar	Dimensio externa (mm)						stipare Location			Pondus (kg)
Exemplar	L	H	h	V	W	DN	Long	Lata	Summus	Pondus (kg)
50GD16-11-1.1T	329	415	100	120	70	50	55	36	41.5	35.4
50GD10-22.3-1.1T	344	425	95	160	100	50				40.8
50GD20-12.5-1.5T	329	430	100	120	70	50				38.7
50GD12.5-25-1.5T	344	440	95	160	100	50				41.4
50GD28-11.7-2.2T	354	465	100	130	80	50				44.4
50GD16-22.3-2.2T	379	510	105	160	100	50				46.8
50GD32-12.5-3T	354	505	100	130	80	50	63	43	46	48
50GD20-25-3T	379	480	100	160	100	50				55.8
50GD24-21.6-3T	394	510	110	160	100	50				59.5
50GD44-11.7-4T	374	530	100	130	80	50				50
50GD32-25-4T	394	540	110	160	100	50				63.5
50GD28-23.4-4T	394	540	110	160	100	50				51.3
50GD50-12.5-5.5T	374	580	100	130	80	50	71	52	49	86.2
50GD38-21.8-5.5T	424	595	105	160	100	50				87
50GD70-11.6-7.5T	474	595	105	160	100	50				91.4
50GD50-25-7.5T	424	595	105	160	100	50				91.8
50GD44-23.5-7.5T	424	595	105	160	100	50				91.3
