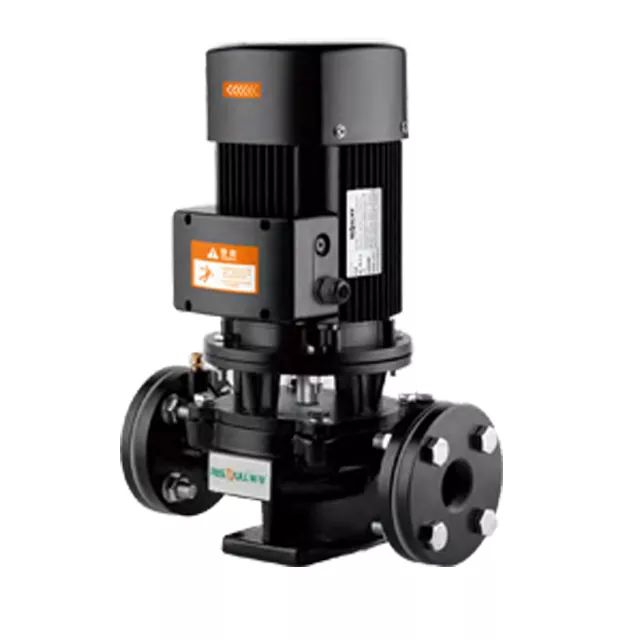

Gravis Officium Industrial in linea aqua Pump

Model:80GD

Cum annos experientiae in productione Gravis Officii Industrialis in Linea Aqua Pump, RISEFULL® amplis Steel Water Pumps suppeditabit. Qualitas summa producti multas applicationes occurrere potest, si opus est, quaeso, ut opportuna opera nostra online de producto accipias. Praeter album productum infra, etiam proprium tuum unicum Steel Aquae Pumps customizare potes secundum necessitates specificas tuas.

Mitte Inquisitionem

depictio producti Data Installation Dimensiones

Una e praecipuis notis gravis Officii nostri Industrialis In Linea Aqua Pump est eius capacitates impressivae perficientur, constructio compacta. Cum rates fluunt altae, magnae pressionis facultates, et certae operationis, haec sentina constituitur ad faciendum omni tempore constantem et potentem. Plus, cum consilio robusto et gravi officiorum constructione, certificare potes quod etiam gravissimas ambitus industriae tractare possit.

Sequens est GD Series introductio. Ferrum in linea sentinae fusum est quae late in aere centrali Aedificii, aquae circulationes aedificiorum & mansionum & mansionum ratio calefacta est, tibia circulatio plantae et Irrigationis agriculturae.. Spes ad auxilium te melius intelligis sentinam aquae industrialis Risfull . Exspectate clientes novos et veteres pergere ad cooperandum nobis ad melius futurum simul creandum.

Product Details

Heavy Duty Industrial In Line Water Pump

Opus Condition

Tersus liquor sine suspendendi solidorum, non infestantibus

Continua Service: S1

Maximum Pressura: X Bar

Liquid Temperature:3℃~9℃

Ambiens Temperature:<40℃

Insulation: F

Praesidium: IP54

Exemplar Definition

Heavy Duty Industrial In Line Water Pump

Exploded View OF Main Component

Heavy Duty Industrial In Line Water Pump

Indicem Main Component Signare figurationem 〇 Configurationis libitum
NO.	Component	Specification/Construction Characteres
1	ANTLIA CORPORIS	Ferrum HT200, Electro-faciens Bum (Sal Spray obsistens tium 300+ Horae)
2	IMPELLER	Ferrum HT200, Electro-faciens Bum (Sal Spray obsistens tium 300+ Horae)
3	Mechanica Sigillum	19BND Type（Furan Impregnation Graphite+SIC， usus vitae 25,000+ Horae）
4	Bracket	Ferrum HT200, Electrocoating Bum (sal Spray obsistens tium 300+ Horae)
5	Globus Bearings	● C&U 〇 TPI(Taiwan)
6	Motor Shaft	● Welding Shaft: Diver 304 (Pump Side) + Carbon Steel (Motor Side)
7	Terminatio Box	aluminium ADC12
8	Terminatio Tabula	Flamma retardans PBT
9	Motor habitationi	aluminium ADC12
10	Fan	●Plastic PP 〇 Nylon PA6
11	Fan Cover	Tensile Steel Plate
12	Plug Funiculus	● 3 Core Testimentum Cable 〇 Cables Plug
13	Motor	●IE2 Motor ◯ Lorem 60 HZ Motor

Exemplar	Impellentem Diameter	Ratum capacitatem	Rated Caput	Efficientia	RPM	Motor Power	NPHS	Inlet/e
Exemplar	Impellentem Diameter	Q/m³/h	H(m*	(%)	(r/min)	(kW)	(M)	Inlet/e
80GD10-44.7-2.2T	100	31.3/44.7/58	11/10/8	66/72/69	2900	2.2	3	80
80GD12.5-50-3T	100	35/50/65	13.8/12.5/10	67/73/70	2900	3	3	80
80GD16-45-4T	125	31.3/45/58	17.5/16/13.6	66/71/69	2900	4	3	80
80GD10-89-4T	100	62.6/89/116	11/10/8.8	70/76/65	2900	4	4.5	80
80GD12.5-100-5.5T	100	70/100/130	13.6/12.5/11	66/74/75	2900	5.5	4.5	80
80GD20-50-5.5T	125	35/50/65	22/20/17	67/72.5/70	2900	5.5	3	80
80GD24-43.3-5.5T	160	30.3/43.3/56.3	26/24/21	60/69/67	2900	5.5	3	80
80GD32-50-7.5T	160	35/50/65	35/32/28	63/71/70	2900	7.5	3	80
80GD16-89-7.5T	125	62.6/89/116	19/16/11	65/72/64	2900	7.5	4.5	80
80GD38-43.5-7.5T	200	30.5/43.5/56.6	40.6/38/33.4	52/65/65	2900	7.5	3	80
80GD28-46.7-7.5T	160	32.7/46.7/61	30.6/28/24	62/70/69	2900	7.5	3	80
80GD20-100-11T	125	70/100/130	23.5/20/14	68/72/64	2900	11	4.5	80
80GD24-86.6-11T	160	60.6/86.6/112.5	27/24/18	65/72/64	2900	11	4.5	80
80GD28-93.5-11T	160	65.4/93.5/121.6	32/28/21	68/74/67	2900	11	4.5	80
80GD44-47-11T	200	32.8/47/61	47/44/40	55/66/67	2900	11	3	80
80GD32-100-15T	160	70/100/130	36.5/32/24	65/74/73	2900	15	4.5	80
80GD38-87-15T	200	61/87/113	41/38/32	61/71/69	2900	15	4.5	80
80GD50-50-15T	200	35/50/65	53.5/50/46	55/67/68	2900	15	3	80
80GD60-43.3-15T	250	30/43.3/56	62/60/54	50/58/58	2900	15	3	80

Exemplar	Dimensio externa (mm)						stipare Location			Pondus (kg)
Exemplar	L	H	h	V	W	DN	Long	Lata	Summus	Pondus (kg)
80GD10-44.7-2.2T	436	495	130	160	100	80	63	43	46	55
80GD12.5-50-3T	436	535	130	160	100	80				63
80GD16-45-4T	431	600	125	160	100	80				67.75
80GD10-89-4T	496	575	140	180	120	80				79.8
80GD12.5-100-5.5T	496	615	140	180	120	80	71	52	49	92
80GD20-50-5.5T	431	600	125	160	100	80				88.4
80GD24-43.3-5.5T	433	595	130	160	100	80				88.15
80GD32-50-7.5T	431	595	130	160	100	80				93
80GD16-89-7.5T	476	615	150	180	120	80				92.8
80GD38-43.5-7.5T	466	615	125	160	100	80				93.5
80GD28-46.7-7.5T	433	595	130	160	100	80				92.1
80GD20-100-11T	478	715	150	180	120	80	83	63	67	167
80GD24-86.6-11T	538	730	150	180	120	80				167
80GD28-93.5-11T	538	730	150	180	120	80				167
80GD44-47-11T	468	715	125	160	100	80				167
80GD32-100-15T	538	730	150	180	120	80				177
80GD38-87-15T	513	710	135	180	120	80				177
80GD50-50-15T	468	715	125	160	100	80				177
80GD60-43.3-15T	518	705	125	180	120	80				177
