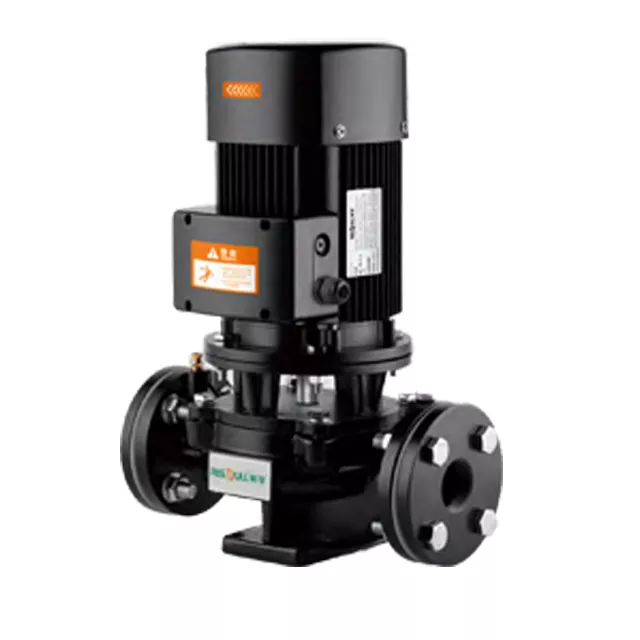

Pressura aqua Pump pro Circulation

Model:65GD

RISEFULL® princeps professionalis Sinarum High Pressura Water Pump Pro fabrica circulatione cum pretio rationabili. Welcome to contact us.

Mitte Inquisitionem

depictio producti Data Installation Dimensiones

Utrum in spatio magno industriae aquam circumferre debes vel simpliciter piscinam tuam vel hortum bene hydratum servare vis, haec sentina ad negotium est. Facile est instituere et conservare, eam solutionem hassle liberam facere cuivis ut circulationem aquarum emendare quis quaerat.

Una e praecipuis beneficiis nostrae aquae Pump High Pressure For Circulation is its powerful motor. Cum motore satis horsepower generat ad magnas aquae volumina movendas, haec sentina perfecta est ad applicationes quae multum potentiam circulationem requirunt.

Sequens est GD Series introductio. Ferrum in linea sentinae fusum est quae late in aere centrali Aedificii, aquae circulationes aedificiorum & mansionum & mansionum ratio calefacta est, tibia circulatio plantae et Irrigationis agriculturae.. Spes ad auxilium te melius intelligis sentinam aquae industrialis Risfull . Exspectate clientes novos et veteres pergere ad cooperandum nobis ad melius futurum simul creandum.

Product Details

High Pressure Water Pump For Circulation

Opus Condition

Tersus liquor sine suspendendi solidorum, non infestantibus

Continua Service: S1

Maximum Pressura: X Bar

Liquid Temperature:3℃~9℃

Ambiens Temperature:<40℃

Insulation: F

Praesidium: IP54

Exemplar Definition

High Pressure Water Pump For Circulation

Exploded View OF Main Component

High Pressure Water Pump For Circulation

Indicem Main Component Signare figurationem 〇 Configurationis libitum
NO.	Component	Specification/Construction Characteres
1	ANTLIA CORPORIS	Ferrum HT200, Electro-faciens Bum (Sal Spray obsistens tium 300+ Horae)
2	IMPELLER	Ferrum HT200, Electro-faciens Bum (Sal Spray obsistens tium 300+ Horae)
3	Mechanica Sigillum	19BND Type（Furan Impregnation Graphite+SIC， usus vitae 25,000+ Horae）
4	Bracket	Ferrum HT200, Electrocoating Bum (sal Spray obsistens tium 300+ Horae)
5	Globus Bearings	● C&U 〇 TPI(Taiwan)
6	Motor Shaft	● Welding Shaft: Diver 304 (Pump Side) + Carbon Steel (Motor Side)
7	Terminatio Box	aluminium ADC12
8	Terminatio Tabula	Flamma retardans PBT
9	Motor habitationi	aluminium ADC12
10	Fan	●Plastic PP 〇 Nylon PA6
11	Fan Cover	Tensile Steel Plate
12	Plug Funiculus	● 3 Core Testimentum Cable 〇 Cables Plug
13	Motor	●IE2 Motor ◯ Lorem 60 HZ Motor

Exemplar	Impellentem Diameter	Ratum capacitatem	Rated Caput	Efficientia	RPM	Motor Power	NPHS	Inlet/e
Exemplar	Impellentem Diameter	Q/m³/h	H(m*	(%)	(r/min)	(kW)	(M)	Inlet/e
65GD10-22.3-1.1T	100	15.6/22.3/29	11/10/8.4	65/67/68	2900	1.1	2.5	65
65GD12.5-25-1.5T	100	17.5/25/32.5	13.7/12.5/10.5	67/69/69	2900	1.5	2.5	65
65GD10-44.7-2.2T	100	32.3/44.7/58	11/10/8	66/72/69	2900	2.2	3	65
65GD16-22.3-2.2T	125	15.6/22.3/29	17/16/14.4	58/66/65	2900	2.2	2.5	65
65GD12.5-50-3T	100	35/50/65	13.8/12.5/10	67/73/70	2900	3	3	65
65GD20-25-3T	125	17.5/25/32.5	21.5/20/18	60/68/67	2900	3	2.5	65
65GD24-21.6-3T	160	15/21.6/28	26/24/20.6	49/58/54	2900	3	2.5	65
65GD16-45-4T	125	31.3/45/58	17.5/16/13.6	66/71/69	2900	4	3	65
65GD32-25-4T	160	17.5/25/32.5	34.4/32/27.5	54/63/60	2900	4	2.5	65
65GD28-23.4-4T	160	16.4/23.4/30.4	30/28/24	54/63/59	2900	4	2.5	65
65GD20-50-5.5T	125	35/50/65	22/20/17	67/72.5/70	2900	5.5	3	65
65GD38-21.8-5.5T	200	15.2/21.8/28.3	40/38/34.5	45/55/55	2900	5.5	2.5	65
65GD32-50-7.5T	160	35/50/65	35/32/28	63/71/70	2900	7.5	3	65
65GD38-43.5-7.5T	200	30.5/43.5/56.6	40.6/38/33.4	52/65/65	2900	7.5	3	65
65GD50-25-7.5T	200	17.5/25/32.5	52.7/50/45.5	49/58/59	2900	7.5	2.5	65
65GD44-23.5-7.5T	200	16.4/23.5/30.5	46.4/44/40	48/57/58	2900	7.5	2.5	65
65GD44-47-11T	200	32.8/47/61	47/44/40	54/66/67	2900	11	3	65
65GD70-23.4-11T	250	16.4/23.4/30.5	17.5/70/67	39/50/52	2900	11	2.5	65
65GD60-21.6-11T	250	15/21.6/28	61/60/57.4	38/49/54	2900	11	2.5	65
65GD80-25-15T	250	17.5/25/32.5	82/80/76.5	39/50/52	2900	15	2.5	65
65GD50-50-15T	200	35/50/65	53.5/50/46	55/67/68	2900	15	3	65
65GD60-43.3-15T	250	30/43.3/56	62/60/54	50/58/58	2900	15	3	65
65GD85-20.6-15T	315	14.4/20.6/26.8	86/85/83	28/38/40	2900	15	2.5	65

Exemplar	Dimensio externa (mm)						stipare Location			Pondus (kg)
Exemplar	L	H	h	V	W	DN	Long	Lata	Summus	Pondus (kg)
65GD10-22.3-1.1T	359	455	95	160	100	65	55	36	41.5	42
65GD12.5-25-1.5T	359	495	95	160	100	65				44.3
65GD10-44.7-2.2T	434	495	130	160	100	65				54.5
65GD16-22.3-2.2T	369	480	102	160	100	65				47.6
65GD12.5-50-3T	434	535	130	160	100	65	63	43	46	48
65GD20-25-3T	369	480	102	160	100	65				56.8
65GD24-21.6-3T	399	510	105	160	100	65				66
65GD16-45-4T	434	600	120	160	100	65				65.3
65GD32-25-4T	394	570	105	160	100	65				63.3
65GD28-23.4-4T	399	540	105	160	100	65				66.8
65GD20-50-5.5T	434	600	120	160	100	65	71	52	49	87
65GD38-21.8-5.5T	429	595	105	160	100	65				87.6
65GD32-50-7.5T	439	595	120	160	100	65				91.6
65GD38-43.5-7.5T	489	600	135	160	100	65				91.8
65GD50-25-7.5T	429	595	105	160	100	65				91.5
65GD44-23.5-7.5T	429	595	105	160	100	65				91.5
65GD44-47-11T	489	715	135	160	100	65	83	63	67	166.2
65GD70-23.4-11T	509	695	120	180	120	65				165.5
65GD60-21.6-11T	509	695	120	180	120	65				165.8
65GD80-25-15T	519	695	120	180	120	65				176
65GD50-50-15T	489	715	135	160	100	65				176
65GD60-43.3-15T	519	705	130	180	120	65				176
65GD85-20.6-15T	584	705	130	180	120	65				176
