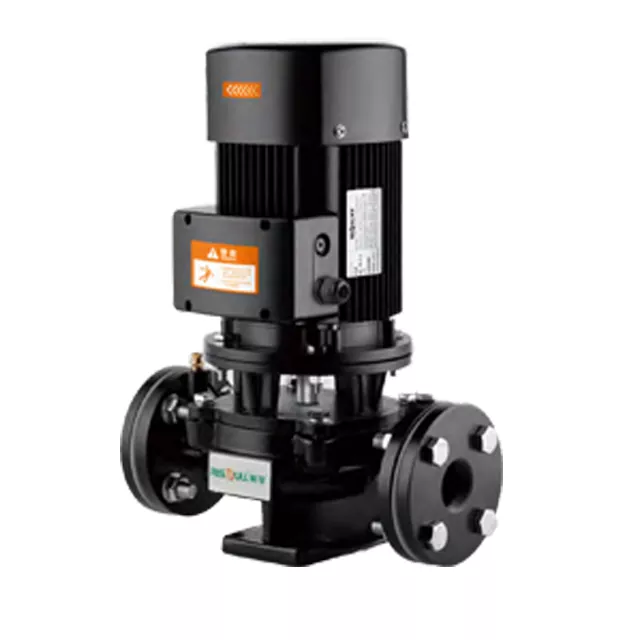

Refrigerant Circulation Pump

Model:40GD

RISEFULL® est professionalis Sinarum Cooling Circulation Pump fabrica et supplementum, si quaeris Dosing Pump For Chemical, consule nos nunc!

Mitte Inquisitionem

depictio producti Data Installation Dimensiones

In corde refrigerationis syestis , nostra refrigeratio Circulationis Pump est summus qualitas motoria possibilitas quae certam et constantem operationem liberat, cupiens ut necessitates refrigerationis tuae minimo negotio occurrant. Sentina destinatur incredibiliter facile ad instituendum, nullo perplexo wiring vel processus institutionis requisito. Simpliciter obturaculum in et vade!

Una e notis praecipuis circulatione refrigerationis nostrae Pump est sua efficacia industria. Cum technologia recentissima aedificata, sentinam potentiam minimam adhibet, dum adhuc perficiendi refrigerationem gravem tradens. Hoc significat quod non debes sollicitare de currendo ad altas energiae libellos, dum domum tuam vel frigus workplace custodis.

Sequens est GD Series introductio. Ferrum in linea sentinae fusum est quae late in aere centrali Aedificii, aquae circulationes aedificiorum & mansionum & mansionum ratio calefacta est, tibia circulatio plantae et Irrigationis agriculturae.. Spes ad auxilium te melius intelligis sentinam aquae industrialis Risfull . Exspectate clientes novos et veteres pergere ad cooperandum nobis ad melius futurum simul creandum.

Product Details

Cooling Circulation Pump

Opus Condition

Tersus liquor sine suspendendi solidorum, non infestantibus

Continua Service: S1

Maximum Pressura: X Bar

Liquid Temperature:3℃~90℃

Ambiens Temperature:<40℃

Insulation: F

Praesidium: IP54

Exemplar Definition

Cooling Circulation Pump

Exploded View OF Main Component

Cooling Circulation Pump

Indicem Main Component Signare figurationem 〇 Configurationis libitum
NO.	Component	Specification/Construction Characteres
1	ANTLIA CORPORIS	Ferrum HT200, Electro-faciens Bum (Sal Spray obsistens tium 300+ Horae)
2	IMPELLER	Ferrum HT200, Electro-faciens Bum (Sal Spray obsistens tium 300+ Horae)
3	Mechanica Sigillum	19BND Type（Furan Impregnation Graphite+SIC， usus vitae 25,000+ Horae）
4	Bracket	Ferrum HT200, Electrocoating Bum (sal Spray obsistens tium 300+ Horae)
5	Globus Bearings	● C&U 〇 TPI(Taiwan)
6	Motor Shaft	● Welding Shaft: Diver 304 (Pump Side) + Carbon Steel (Motor Side)
7	Terminatio Box	aluminium ADC12
8	Terminatio Tabula	Flamma retardans PBT
9	Motor habitationi	aluminium ADC12
10	Fan	●Plastic PP 〇 Nylon PA6
11	Fan Cover	Tensile Steel Plate
12	Plug Funiculus	● 3 Core Testimentum Cable 〇 Cables Plug
13	Motor	●IE2 Motor ◯ Lorem 60 HZ Motor

Exemplar	Impellentem Diameter	Ratum capacitatem	Rated Caput	Efficientia	RPM	Motor Power	NPHS	Inlet/e
Exemplar	Impellentem Diameter	Q/m³/h	H(m*	(%)	(r/min)	(kW)	(M)	Inlet/e
40GD16-11-1.1T	125	8/11/14.5	17/16/14	47/57/54	2900	1.1	2.3	40
40GD20-6.3-1.1T	125	4.4/6.3/8.3	21/20/18	41/46/43	2900	1.1	2.3	40
40GD20-12.6-1.5T	125	8.8/12.6/16.3	21.2/20/17.8	49/58/57	2900	1.5	2.3	40
40GD28-5.9-1.5T	160	4.1/5.9/7.8	29/28/26.3	34/39/39	2900	1.5	2.3	40
40GD28-11.7-2.2T	160	8.2/11.7/15.2	29/28/26	44/41/50	2900	2.2	2.3	40
40GD36-5.3-2.2T	200	3.7/5.3/7	38/36/34.5	23/29/27	2900	2.2	2.3	40
40GD32-12.5-3T	160	8.8/12.5/16.3	33/32/30	45/52/51	2900	3	2.3	40
40GD36-10.6-3T	200	7.5/10.6/13.8	37/36/34	35/44/42	2900	3	2.3	40
40GD44-5.9-3T	200	4.1/5.9/7.8	45/44/42	26/31/30	2900	3	2.3	40
40GD44-11.7-4T	200	8.3/11.7/15.3	45/44/42	37/45/45	2900	4	2.3	40
40GD50-6.3-4T	200	4.4/6.3/8.3	51/50/48	26/33/32	2900	4	2.3	40
40GD60-5.5-4T	250	3.8/5.5/7	61.5/60/56	23/27/26	2900	4	2.3	40
40GD50-12.5-5.5T	200	8.8/12.5/16.3	51.2/50/48	38/46/46	2900	5.5	2.3	40
40GD70-5.9-5.5T	250	4.1/5.9/7.8	72/70/65	24/28/27	2900	5.5	2.3	40
40GD70-11.6-7.5T	250	8.2/11.6/15.2	71/70/68	28/38/39	2900	7.5	2.3	40
40GD80-6.3-7.5T	250	4.4/6.3/8.3	82/80/74	24/28/28	2900	7.5	2.3	40

Exemplar	Dimensio externa (mm)						stipare Location			Pondus (kg)
Exemplar	L	H	h	V	W	DN	Long	Lata	Summus	Pondus (kg)
40GD16-11-1.1T	339	415	95	120	70	40	55	36	41.5	34.8
40GD20-6.3-1.1T	314	410	90	120	70	40				34.5
40GD20-12.6-1.5T	339	430	95	120	70	40				39.5
40GD28-5.9-1.5T	352	420	85	120	70	40				38.6
40GD28-11.7-2.2T	352	445	85	120	70	40				41.2
40GD36-5.3-2.2T	372	470	94	130	80	40				40.4
40GD32-12.5-3T	359	505	100	130	80	40	63	43	46	54.7
40GD36-10.6-3T	394	500	100	130	80	40				55.2
40GD44-5.9-3T	372	495	94	130	80	40				54.6
40GD44-11.7-4T	394	530	100	130	80	40				62
40GD50-6.3-4T	372	525	94	130	80	40				62.8
40GD60-5.5-4T	439	535	100	130	80	40				64
40GD50-12.5-5.5T	394	580	100	130	80	40	71	52	49	85
40GD70-5.9-5.5T	439	580	100	130	80	40				85.6
40GD70-11.6-7.5T	474	585	100	160	100	40				90.2
40GD80-6.3-7.5T	439	580	100	130	80	40				91.4
