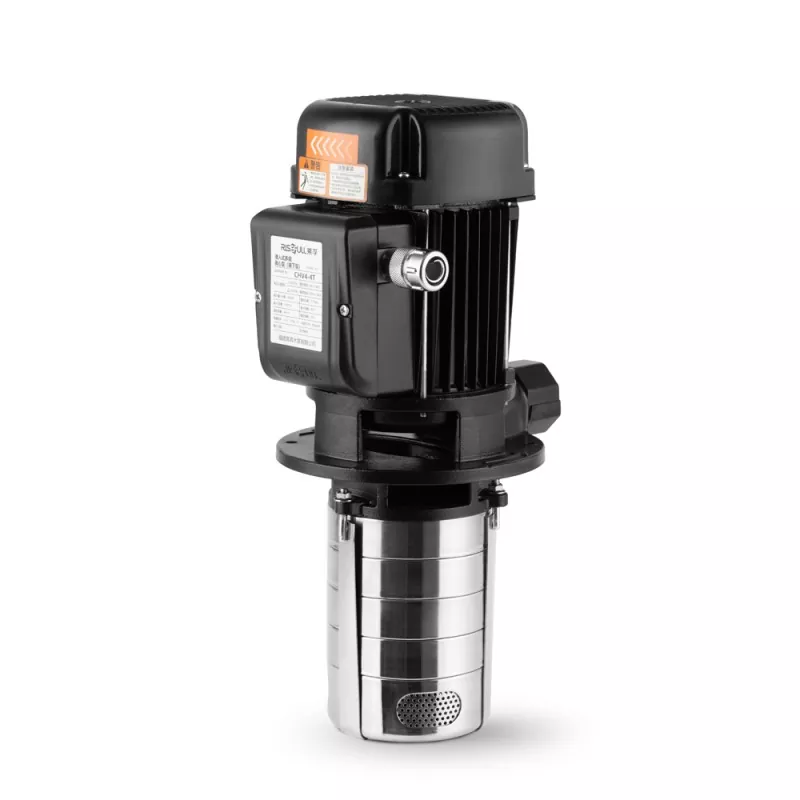

Risefull High Pressure Electric Pump Commercial Usus Rated O 4M³ / h Immersible Diver Vertical Multistage

Model::CHV4-3/CHV4-4/CHV4-5/CHV4-3E/CHV4-4E/CHV4-5E/CHV4-6E/CHV4-7E

Risus est porttitor ac professionalis aquae sentinae fabrica et elit in Sinis. Specialitati sumus in sentina aquae electricae per multos annos. Cum annos experientiae in familia aqua sentinam , aquae mollis et industriae accessiones sentinam , aquae sentinae surgentis multis applicationibus occurrere possunt . Nam sentinam domesticam , multa applicationes uti possumus , Pipeline cursus , aqua deorsum cursus , turris aquae impletio , vadum bene flare et profunda bene sentinam . Nam aquae industrialis sentinam , aquae periphericae cucurbitae , peripheriae aquae cucurbita temperatura aquae sentinae

Mitte Inquisitionem

depictio producti

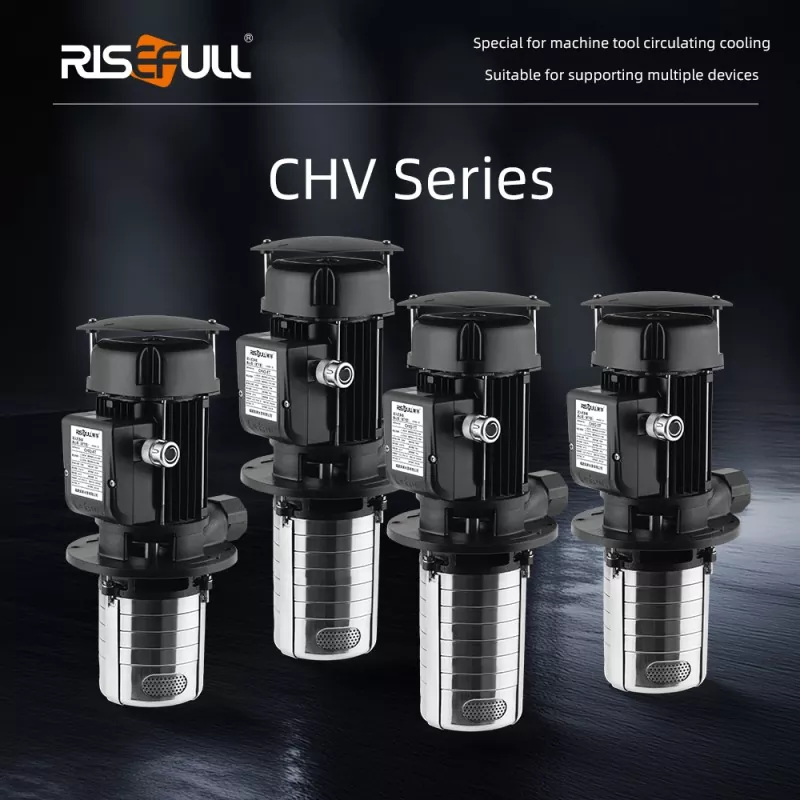

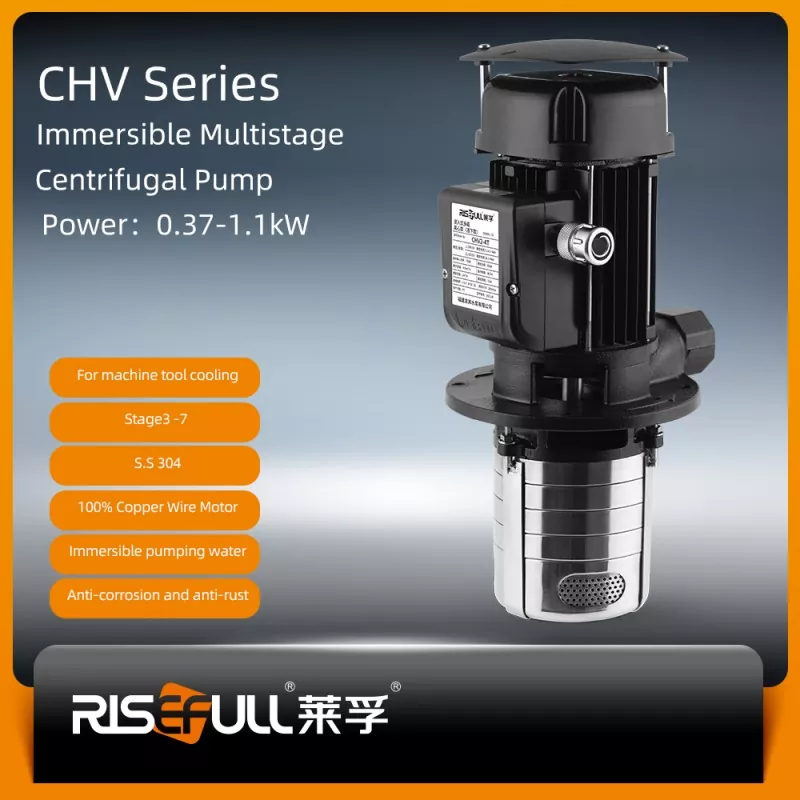

Sequens est introductio CHV Series The CHV immersibilis multae centrifugae sentinae, praesertim ad refrigerationem lubricantium machinarum instrumentorum exhauriendi destinata, et super piscinas collocari cum acervo sentinae in liquore exantlandi. SCALAE SBK soleatus praesto sunt variis moles sentinarum et variis gradibus numerorum ad praebendum fluxum, pressionem et longitudinem requisiti.

Product Specification:

Product nomen:	Vertical Multistage Centrifugae Pump
Potestas	0.55kW~1.1kW
Max flow	7m³/h
Max Caput	28M~65M
Inlet / exitus	1"X1"
Sentinam Corpus	Steel 304
Difusores	Steel 304
Bracket Plate	Ferrum cum Electore coating
Shaft	S.S Shaft
Impeller	Steel 304 Impeller
Motor	Filum aeris
Color	Pulvis Color Coating
MOQ:	10pcs
Sample tempus:	Intra VII dies
Tempus productionis:	35-40 dies post confirmationem
Testimonium	CE

Product Details

Data

Model	Potestas		Q m³/h		1		2	3		4	5		6		7
	kW	HP
CHV4-3	0.55	0.75	H (m)	28		27		26	23.5		20.5	17		13
CHV4-4	0.75	1		37.5		36		34	31		27	23		19
CHV4-5	1.1	1.5		47		45		43	40		34	31		23
CHV4-3E	0.55	0.75		27		25		22.5	21.5		16	10
CHV4-4E	0.75	1		37		35		32	29		24	15
CHV4-5E	0.9	1.2		46		43		40	35		28	19
CHV4-6E	1	1.4		55.5		52		48	43		35	23
CHV4-7E	1.1	1.5		65		61		56	51		42	27

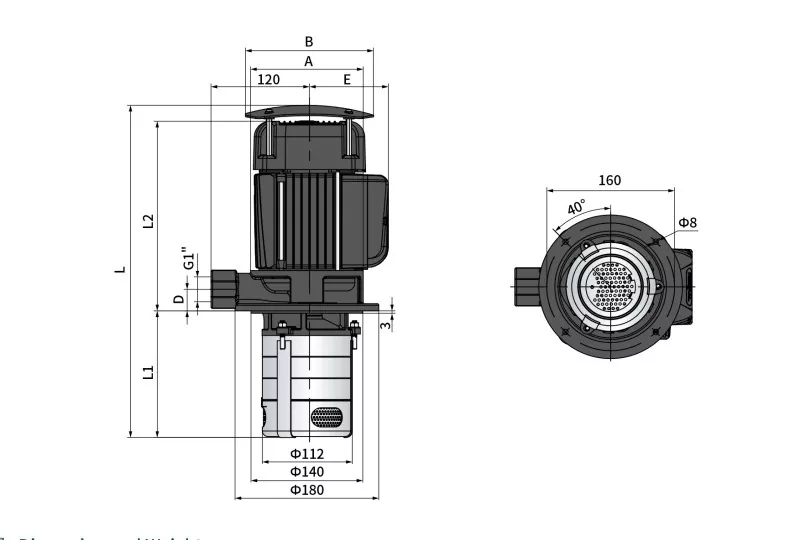

Installation Dimensiones et Pondus

Motor	Model	Dimensio (mm)							Pondus (kg)
Motor	Model	L	L1	L2	A	B	D	E	Pondus (kg)
Tres tempus Unius phase	CHV4-3	411	159	228	120	136	25.5	88	13
	CHV4-4	443	186	238	141	158	27	102	14.5
	CHV4-5	470	213	238	141	158	27	102	15.5
	CHV4-3E	384	132	228	120	136	25.5	88	10.5
	CHV4-4E	408	150	238	141	158	27	102	13
	CHV4-5E	426	168	238	141	158	27	102	14.5
	CHV4-6E	444	186	238	141	158	27	102	15
	CHV4-7E	462	204	238	141	158	27	102	15.5
