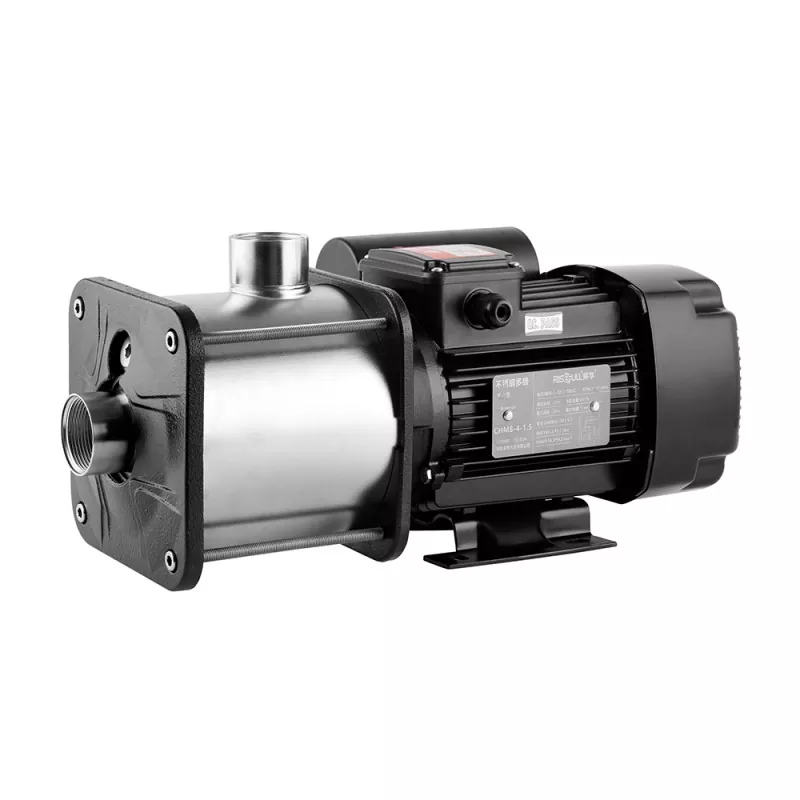

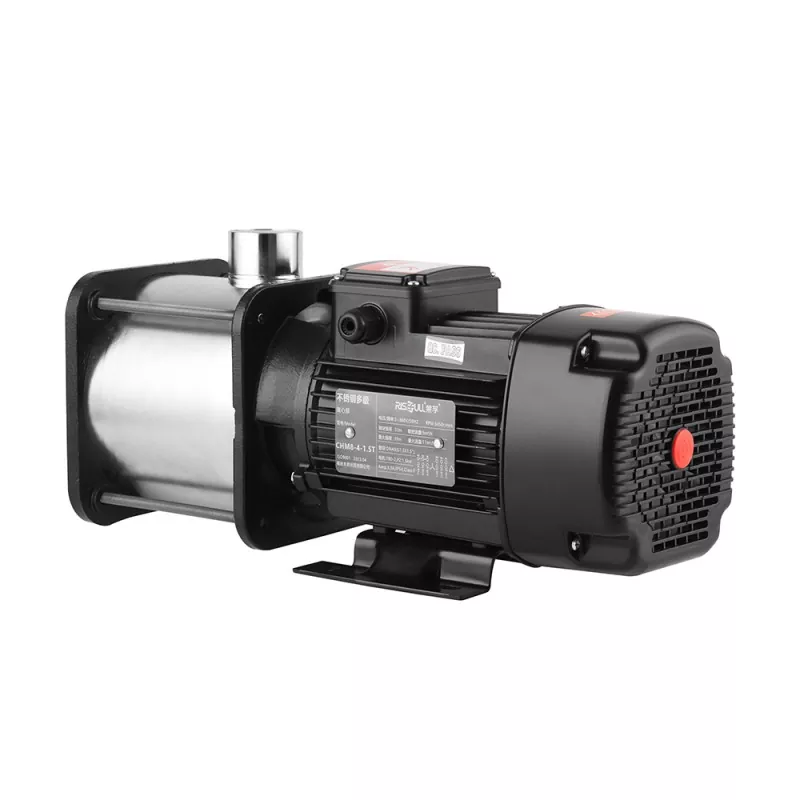

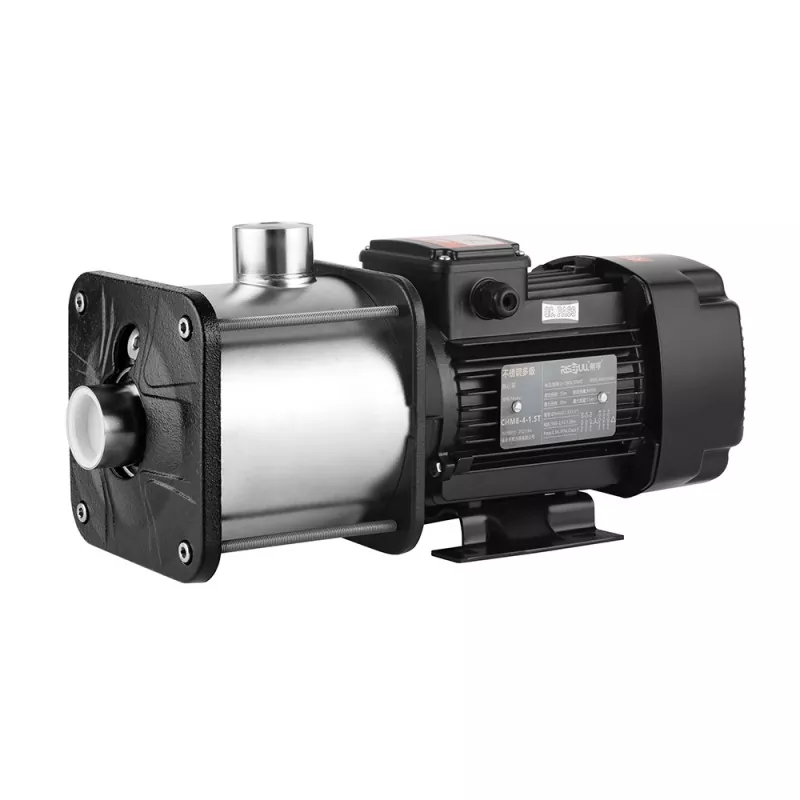

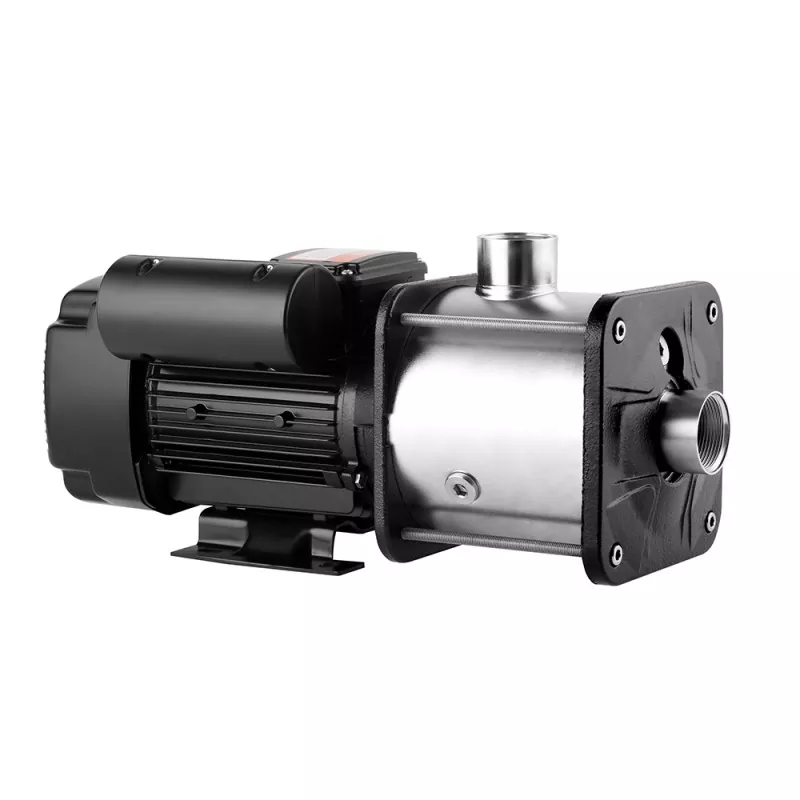

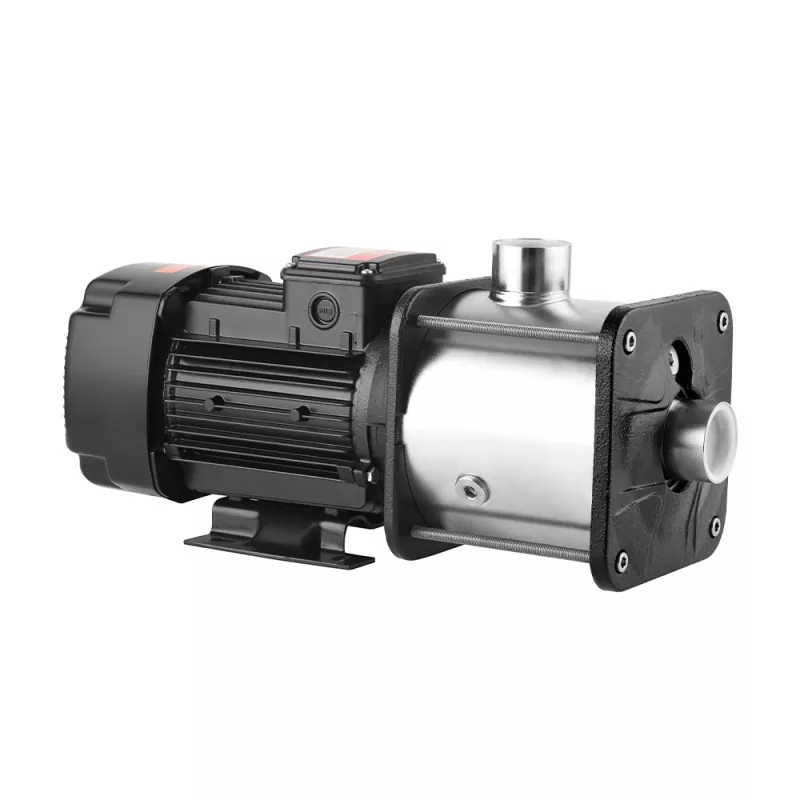

Pressura Multistage Pump

Model:CHM8-2/CHM8-3/CHM8-4/CHM8-5

RISEFULL® ut unus opificem professionalis in Sinis, RISEFULL® tibi praebere velim Multistage Pump High Pressure. Et offeremus tibi optimam post venditionem servitii et opportunam traditionem.

Incorrupta ferro constructa, haec High Pressura Multistage Pump constructa est ut ambitus etiam duriores sustineat, diuturna et hassle libera experientia praestans. Multis etiam rationibus instructa est, quae permittit ut humores etiam in magnis pressuris efficaciter moveant.


Quod Maximum Pressura Multistage Pump seorsum ponit ab aliis soleatus centrifugae est eius industriae facultates salutaris. Altitudo eius efficientiae motoris minorem vim ad alia exempla consumit, unde in inferioribus sumptibus operandis et vestigium carbonis minuendi.


Haec sentina etiam cum multitudine lineamentorum venit quae facilem faciunt uti et conservare. Eius compactum et leve consilium permittit facilem institutionem, et eius sonum et tremulum humilis gradus efficit experientiam commodam operandi. Constructio modularis etiam permittit facilem accessum ad sua membra, auram faciens et sustentans.


Princeps Pressura Multistage Pump machinatum esse versatilem, cum range exemplorum qui opsonatum ad varias rates fluxus et pressionis requisita sunt. Utrum fructus industriae in processu tuo augere cupis vel certa aquae copia pro domo tua indiges, haec sentina formari potest ad certas necessitates tuas occurrere.


Series CHM horizontalis sine ferro multis statibus centrifugae incorrupta est productus in foro nunc relative matura, quae cum compage compacta et operatione stabili, humilis strepitu operante, eicientia usque ad 44-70% est. Omnis aqua transiens partes fiunt ferro immaculato AISI304 .It late in

1. Aeris condiciones refrigerationis ratio & HVAC systema

2. Curatio aquae: Aqua Purgatio et Aqua Filtering

3. Aquarum ratio: Pipeline traditio et aedificium cursus

4.   Piscaria Industry and Agriculture: Aquaculture, Farm aspersio, irrigatio & stillicidium irrigatio

Product Details

High Pressure Multistage PumpHigh Pressure Multistage PumpHigh Pressure Multistage PumpHigh Pressure Multistage Pump

Data

Exemplar

Potestas

kW

Max flow

m³/h

Max Caput

m

Ratum Point

(Flow@Caput)

Impeller

Qty

CHM8-2

0.75

13.2

20

8m³/h@18m

2

CHM8-3

1.1

13.5

31

8m³/h@27m

3

CHM8-4

1.5

13.5

40

8m³/h@35m

4

CHM8-5

2.2

13.8

51

8m³/h@45m

5

High Pressure Multistage PumpHigh Pressure Multistage PumpHigh Pressure Multistage PumpHigh Pressure Multistage PumpHigh Pressure Multistage Pump

Opus Condition

1. Liquid Temperature: -15~105°c

2. Maxime Ambiens Temperature: +45°C

3. Maximum Pressura: X Bar

4. Medium Physica;

● aqua munda vel aqua similis liquoris (sine fibris, suspensis solid≤3% & diameter≤2mm)

Antifreeze Liquid (Main component: glycol)

Mitis mordax liquor (PH 5. 9)

Sigillum Flexilis in sentinam est EPDM (ut non posset eruere oleum minerale usedto)

5. lf altitudo altior quam 1000 metra et viscositas medii maior quam mundanae aquae, necesse est ut marginem aquae sentinae augeat ne motoris aestuat.

High Pressure Multistage Pump

Nec.

Component

Materia

Nec.

Component

Materia

01

Screw

SUS201

21

Iacta Cohortis

NBR

02

Exhaurire stupra

AISI304

22

Screw

SUS201

03

O inauris

EPDM

23

Bracket

HT200

04

Sentinam Corpus Cover

HT200

24

Ferens

05

Sentinam Corpus

AISI304

25

Rotor

Welding Shaft cum AISI304

06

Cap nut

AISI304

26

Motor

07

Ultimum Location Sleeve

AISI304

27

Terminatio Tabula

PBT

08

Inlet Difusores

AISI304

28

Terminatio Box elementum

NBR

09

Impeller

AISI304

29

Terminatio Box

aluminium

10

Tungsten Steel Shaft Sleeve

Wolframium Steel

30

Screw

11

Shaft Sleeve

AISI304

31

Screw

12

Support Difusores

AISI304

32

Cable Fairlead

PP

13

Shaft Sleeve

AISI304

33

Solum Support

14

Difusores

AISI304

34

Screw

15

Primum Location Sleeve

AISI304

35

Ver elementum

16

Outlet Difusores

AISI304

36

Back Cover

HT200

17

Plana Gasket

AISI304

37

Fan

18

Mechanica Sigillum

Graphite +SIC

38

Fan Cover

PA6

19

O inauris

EPDM

39

Flexilis Logo

Silicone
