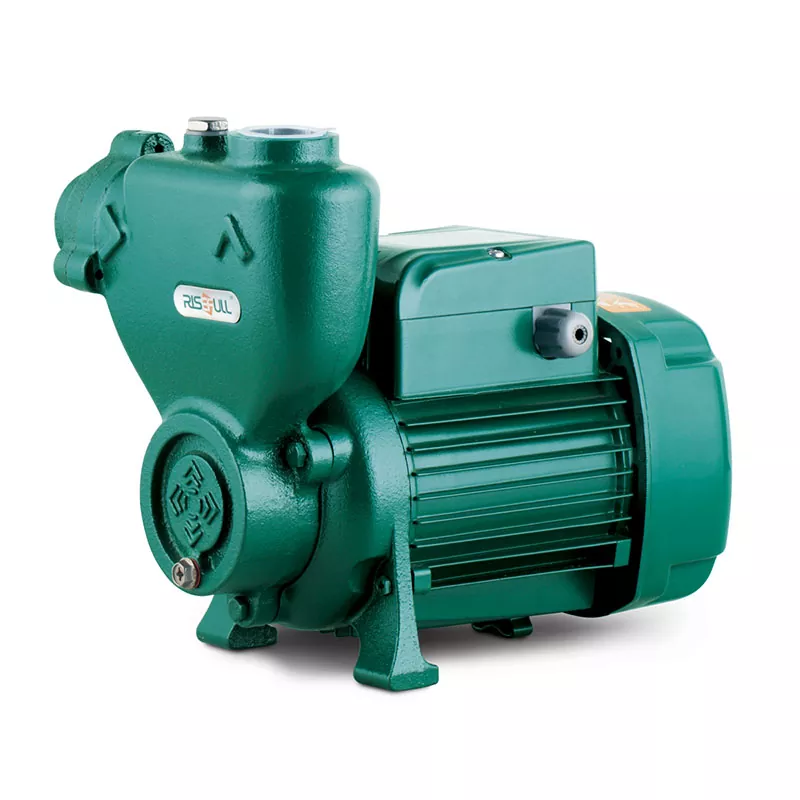

Hot Sale High Temperature Oil Pump pro Machina

Potestas

0.5HP/1HP

Max flow

40L/min, 65L/min

Max Caput

323M,46M

Inlet / exitus

1"X1"

Sentinam Corpus

Ferrum cum Electore coating

Bracket

Ferrum cum Electore coating

Shaft

S.S Shaft

Impeller

aes Impeller

Motor

Filum aeris

Color

Pulvis Color Coating in motor parte

MOQ:

100pcs

Sample tempus:

Intra VII dies

Tempus productionis:

35-40   diebus   post   ordinem   confirmationis

Testimonium

CE

Unius phase

Tres tempus

kW

HP

L/min

0

5

10

15

20

25

30

35

40

45

50

55

60

65

PH60

PH60T

0.37

0.5

H

M

32

29

25.5

22

*19

*15.5

*12.5

*9

6

PH70

PH70T

0.75

1

46

43

39.5

36

33

26.5

*23.5

*20.5

*17

*14

*10.5

7.5

4

NO.

Component

Specification/Construction Characteres

1

ANTLIA CORPORIS

Ferrum HT200, Electro-faciens Bum (Sal Spray obsistens tium 300+ Horae)

2

IMPELLER

 ●Brass（H58%+）      〇  Steelemque SUS304

3

Mechanica Sigillum

 Impregnatio Graphite+SIC+Polyflon

4

Bracket

Ferrum HT200, Electro-faciens Bum (Sal Spray obsistens tium 300+ Horae)

5

Globus Bearings

  ● C&U    〇 Standard Type    〇 TPI(Taiwan)

6

Motor Shaft

● Sagitta Welding: Steel 304 (Pump Side) + Carbon Steel (Motor Part) 〇 SUS410(2CR13)

7

Terminatio Box

Plastic ABS

8

Terminatio Tabula

Flamma retardans PBT

9

Capacitor

 ●CBB60 Testa plastica Capacitor    〇 CBB65 Explosio-probatio Capacitor    〇 450VL@220-240V Motor   〇 300VL@110-127VMotor

10

Motor habitationi

aluminium ADC12

11

Fan

  〇 Plastic PP   ● Nylon PA6

12

Fan Cover

Plastic PP

13

Plug Funiculus

 ● 3 Core Testimentum Cable      〇   Cables  Plug

14

Motor

 〇 Vexillum filum Cuprum    ●   Motorem  Occomicum    Oconomicum        〇  3-Phase  Motor      〇    Motoris  60 HZ  Motor

PH60

2.3A

1A

PH70

5.1A

2A

PH60

6.85

1

7.35

28X22X26

PH70

10.65

1

11.15

30.5X18X26
